Wall Mounted Energy Storage Battery LFP BSW Series 5kWH 10kWH

5kWH/10kWH｜LFP Battery｜Wall Mounted

Home Products Wall Mounted Energy Storage Battery LFP BSW Series 5kWH 10kWH

Wall Mounted Energy Storage Battery LFP BSW Series 5kWH 10kWH

5kWH/10kWH｜LFP Battery｜Wall Mounted

Highlights at a Glance

Premium LiFePO4 cells – Long lifespan, up to 6000 cycles

Wall-mount design – Sleek, easy installation

Compatible with 20+ inverter brands – Supports CAN/RS485 communication

Parallel Connection Support – Expandable for larger energy storage systems

Smart BMS – Multi-protection for safe, reliable operation

Quick Summary

BSW Series Wall-Mounted Lithium Battery – High-performance LiFePO4 cells with up to 6000 cycles. Compatible with major inverters, available in 51.2V100Ah and 51.2V200Ah, modular wall-mount design for easy installation. Supports parallel connection. Ideal for wholesalers and solar solution providers seeking reliable, long-lasting energy storage.

BSW-5kWh energy storage solar battery, high-performance lithium battery for residential and commercial solar systems, OEM/ODM factory supply

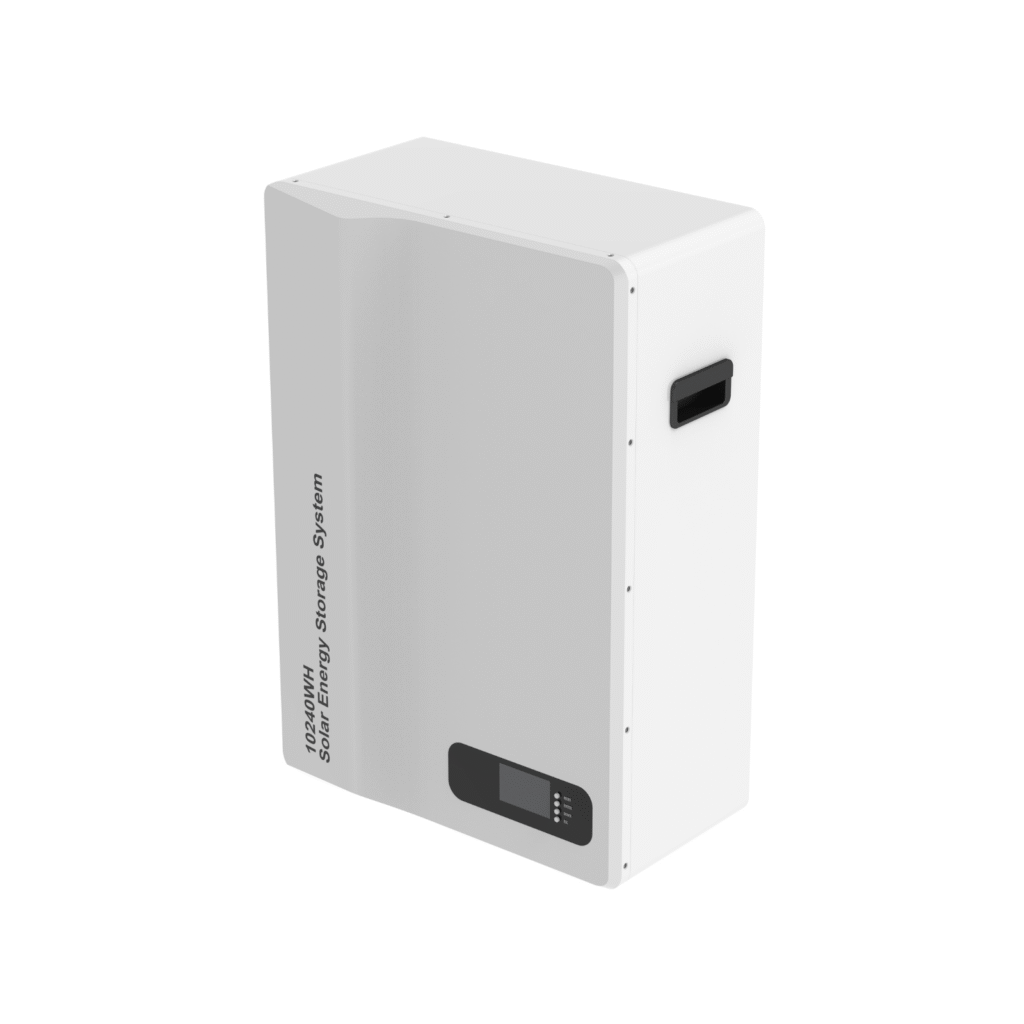

BSW-10kWH Battery Wall Mounted LFP Energy Storage

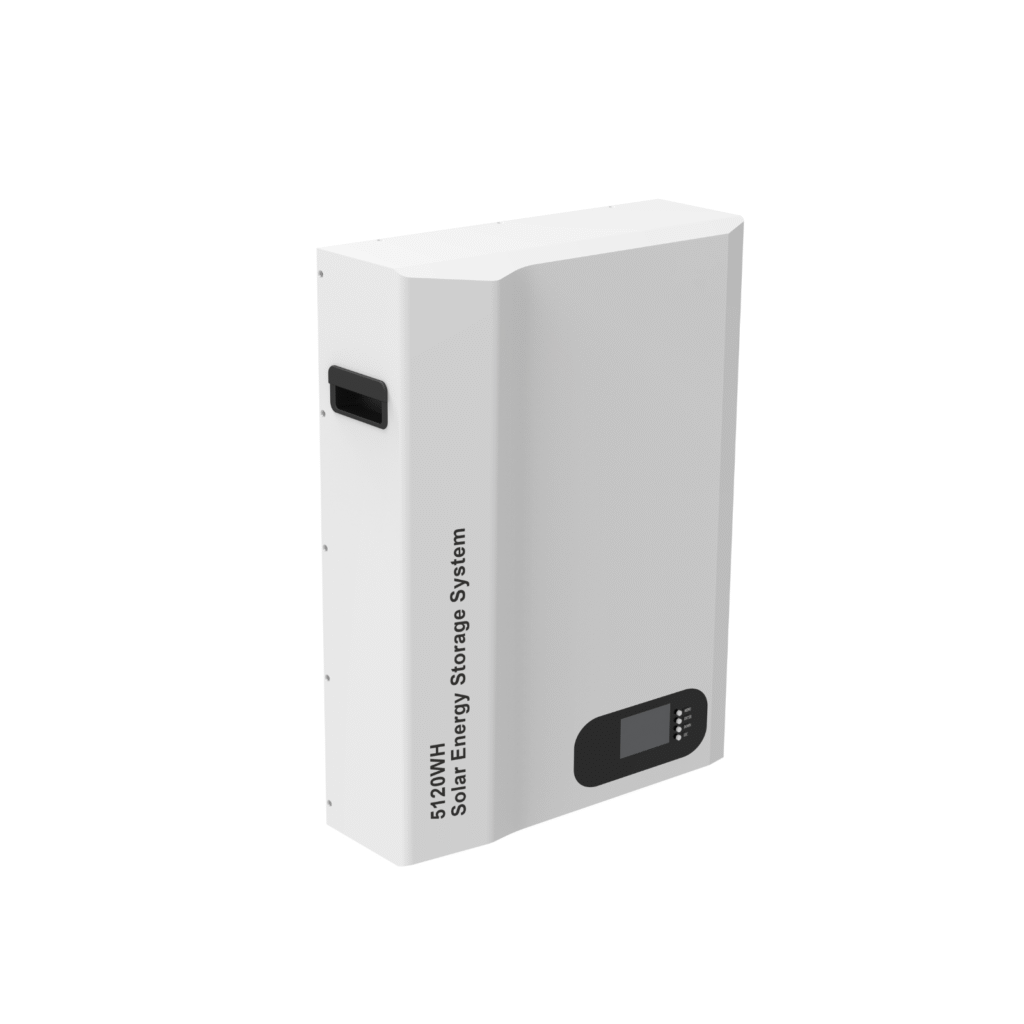

BSW Series 5kwh LFP Battery BAT Wall Mounted

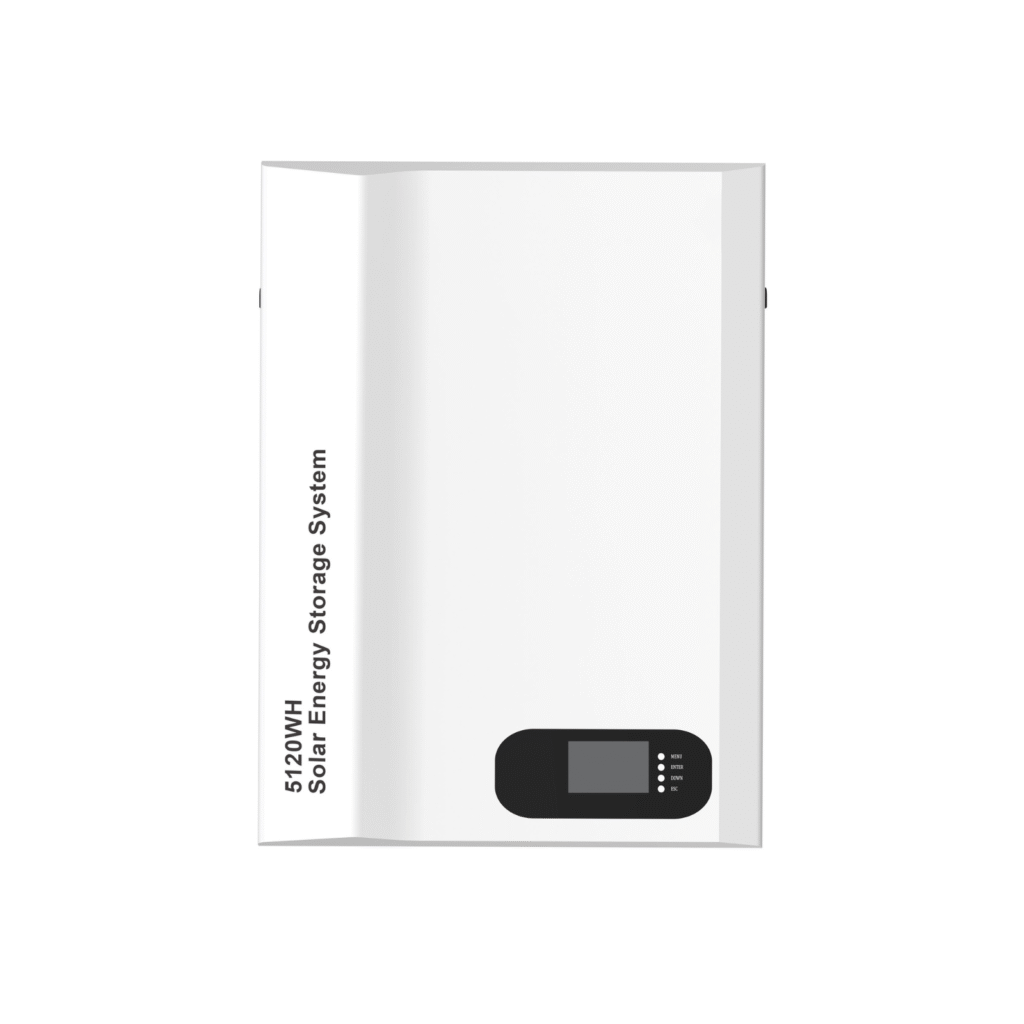

5kWH BSW Wall Mounted Battery Energy Storage

Model	BSW -5kWH	BSW- 10kWH
Battery Type	LiFePO4	LiFePO4
Nominal Voltage	51.2V	51.2V
Nominal Capacity	100Ah 5120Wh	200Ah 10240Wh
Working Voltage	43.2~58.4V	43.2~58.4V
Limited charge voltage	58.4V MAX	58.4V MAX
Standard Charing Current	50A	50A
Max charging current	100A	100A
Max discharging current	100A	100A
Depth of discharge	90%	90%
Cycle life	≥ 6000, 0.5C, EOL80%	≥ 6000, 0.5C, EOL80%
Parallel	Support	Support
Battery dimension	405580185	435630275
Back-mounted bracket	38.5 × 22.5 × 2.5 cm	38.5 × 22.5 × 2.5 cm
Battery weight	46.8kg not include installation components	86.7kg not include installation components
Working temp range	Charge:0～50℃At10%-90%RH Discharge:-10℃-60℃	Charge:0～50℃At10%-90%RH Discharge:-10℃-60℃
Storage temp range	-20℃~60℃	-20℃~60℃

Warranty & Service

Standard warranty 5 years. For extended warranty or additional service options, please confirm with us before order placement.
