Highlights at a Glance

High Lumen & High CRI LEDs – Equipped with branded LED chips and premium optical lenses for maximum brightness, wide illumination, and natural light color without yellowing or oxidation.

Durable Aluminum Housing – Strong, anti-corrosion structure with excellent heat dissipation, designed for long-term outdoor use.

IP65 Waterproof & Outdoor-Ready – Resistant to rain, dust, and harsh environments, ideal for streets, highways, parking lots, gardens, and public areas.

Integrated All-in-One Design – Combines solar panel, LiFePO4 lithium battery, LED lamp, and smart controller into one compact unit for easy installation and low maintenance.

Safe & Long-Life Battery – Built-in LiFePO4 (LFP) battery with high safety performance and over 4000 charge-discharge cycles, ensuring long-lasting reliability of the solar street light.

High-Efficiency Monocrystalline Solar Panel – Full-power, A-grade cells with >22% conversion efficiency, 0 dead cells, no cracks, ensuring maximum power generation.

Customizable for Projects – Flexible options for solar panel wattage, battery capacity, lamp power, and backup days to meet engineering or regional requirements.

Certified & Transport-Ready – Equipped with UN38.3 and MSDS certifications for safe transportation; other certifications available upon request before order.

Energy-Saving & Eco-Friendly – 100% solar-powered street light, reducing electricity costs and supporting green energy applications.

Quick Summary

The all-in-one solar street light JDA200 / 300/ 400 / OEM features a durable aluminum housing with high-lumen, high-CRI branded LED chips and premium optical lenses that resist yellowing and oxidation, ensuring maximum brightness and illumination. With an IP65 waterproof rating, this integrated solar street lamp is built for outdoor use in streets, roads, parking lots, and gardens. Small batch customization is supported, allowing tailored designs for your project or region, including solar panel wattage, battery capacity, backup days, and total lamp power.

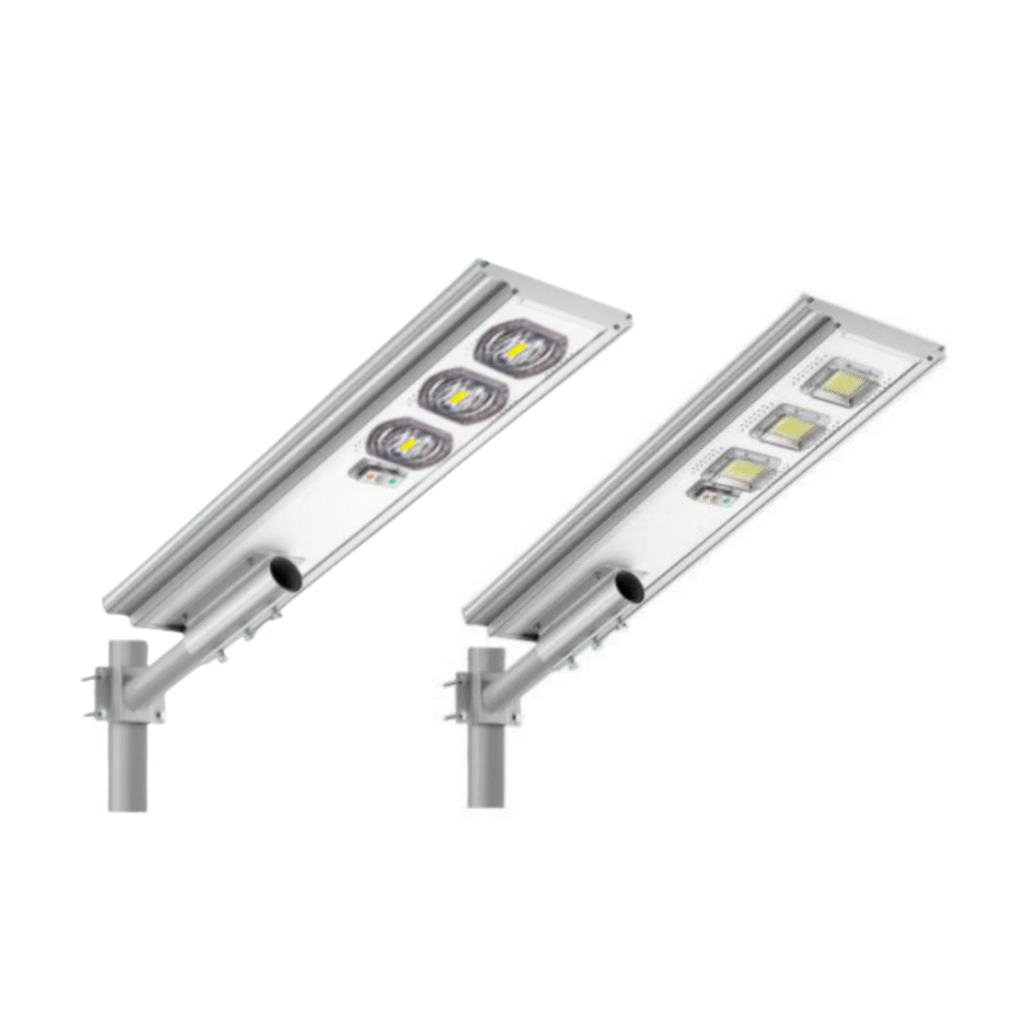

JDA solar LED street light with COB or SMD options

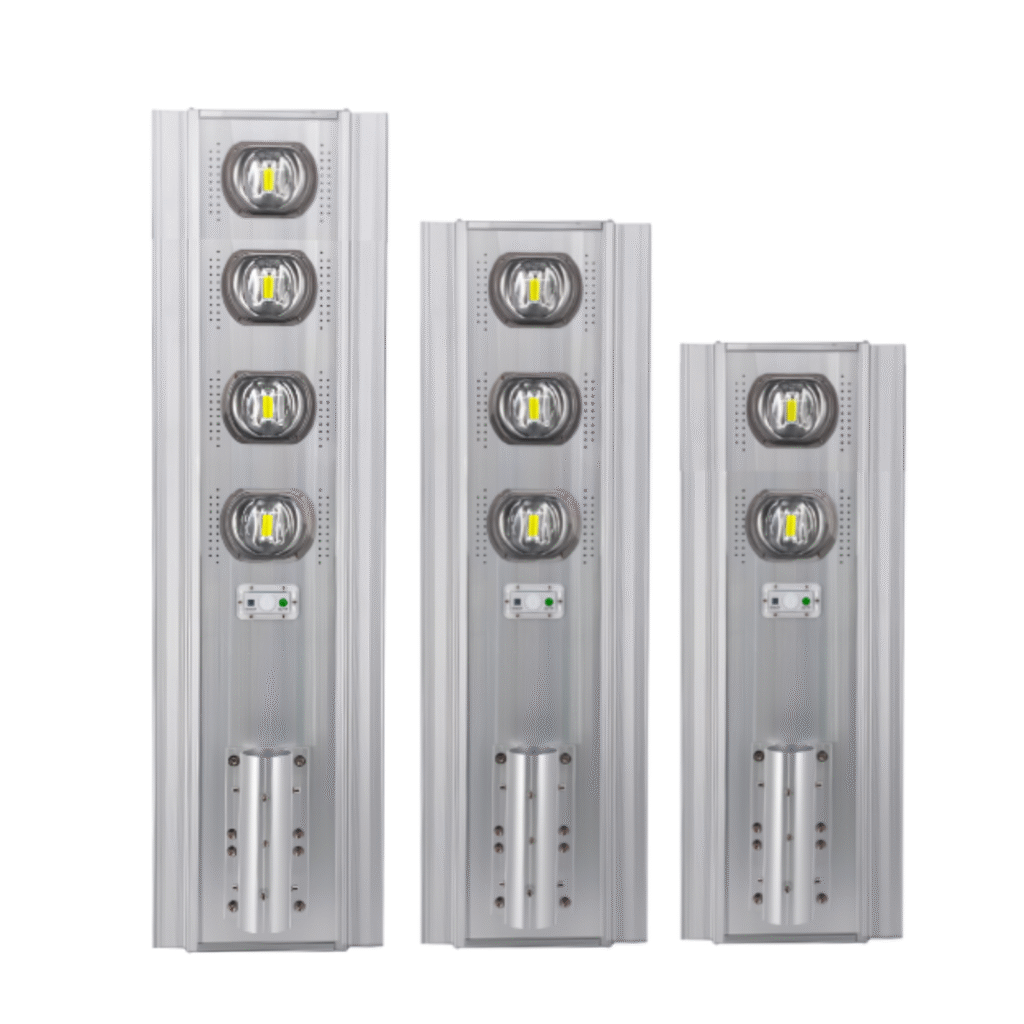

JDA Series All in One Solar Street Light with high brightness LED and durable aluminum housing

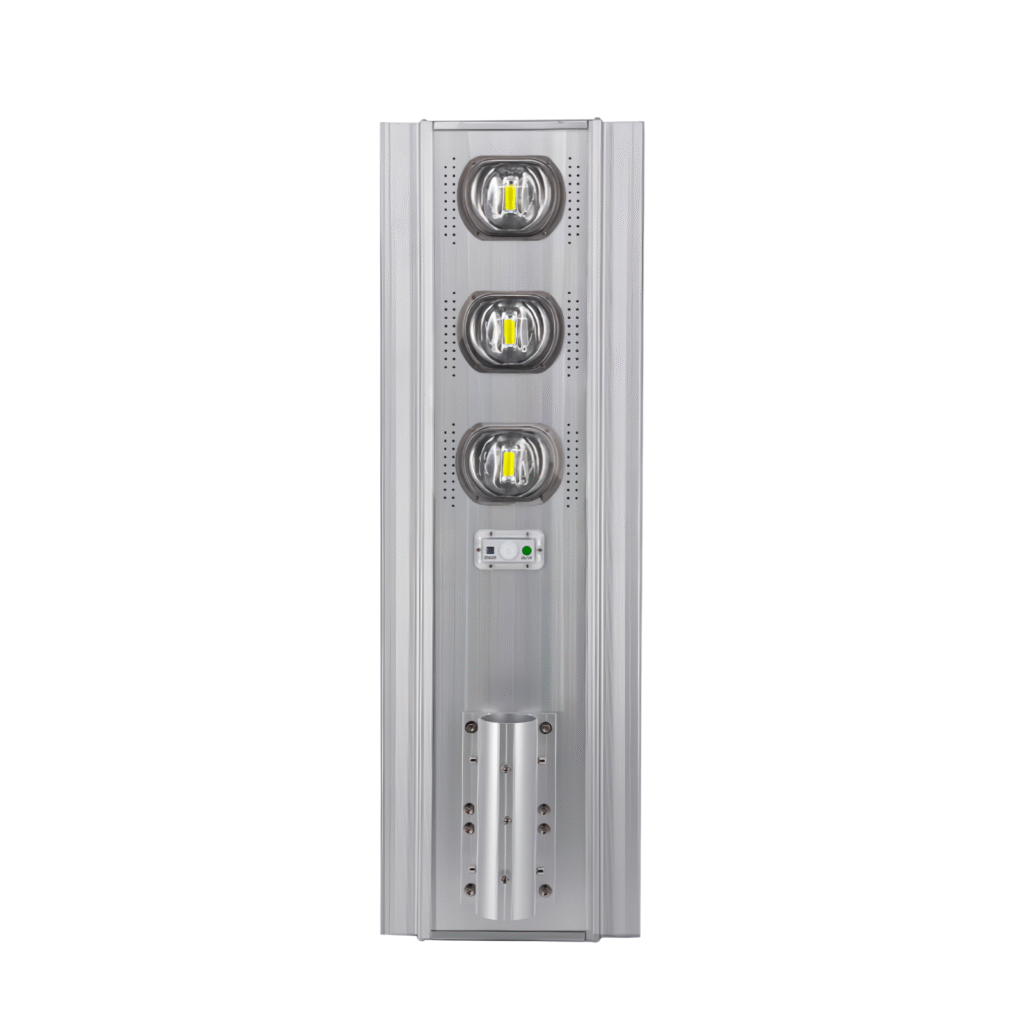

A300 solar street light aluminum shell ip65outdoor waterproof

Model	JDA200-SMD/COB	JDA300-SMD/COB	A400-SMD/COB
Solar Panel Rated Wattage	40W	60W	80W
Solar Panel Type	Monocrystalline Solar Panel	Monocrystalline Solar Panel	Monocrystalline Solar Panel
Battery Capacity	40Ah	60Ah	80Ah
Battery Type	LiFePO₄ Battery, 4000+ Cycles	LiFePO₄ Battery, 4000+ Cycles	LiFePO₄ Battery, 4000+ Cycles
LED Chips	SMD 5730 / COB	SMD 5730 / COB	SMD 5730 / COB
Color Temperature	3000K (Warm White) / 4000K (Neutral White) / 6000K (Cool White)	3000K (Warm White) / 4000K (Neutral White) / 6000K (Cool White)	3000K (Warm White) / 4000K (Neutral White) / 6000K (Cool White)
Operation Mode	Motion Sensor with Remote Control / Motion Sensor + Dusk-to-Dawn / Dusk-to-Dawn (Time Control)	Motion Sensor with Remote Control / Motion Sensor + Dusk-to-Dawn / Dusk-to-Dawn (Time Control)	Motion Sensor with Remote Control / Motion Sensor + Dusk-to-Dawn / Dusk-to-Dawn (Time Control)
Lighting Hours / Per Night	12Hours	12Hours	12Hours
Charging Hours	4～6Hours	4～6Hours	4～6Hours
Induction Angle	150 Degree	150 Degree	150 Degree
Suggest Installation Height	3-4Meters	4-6Meters	6-8Meters

Warranty & Service

The complete fixture comes with a 2-year warranty. For projects requiring a 3-, 5-, or longer-term warranty, please specify your requirements when making an inquiry.
