High MPPT efficiency up to 99.9% for maximum energy harvest
Fast switch time (<10ms) ensures seamless backup power
Wide MPPT voltage range: 180V–900V d.c.
Supports 160V–700V lithium and lead-acid batteries
Robust IP65 protection for indoor and outdoor applications
Maximum PV input 3×36A d.c., with 4 MPPTs and 8 string inputs
Maximum DC voltage up to 1000V for high-capacity systems

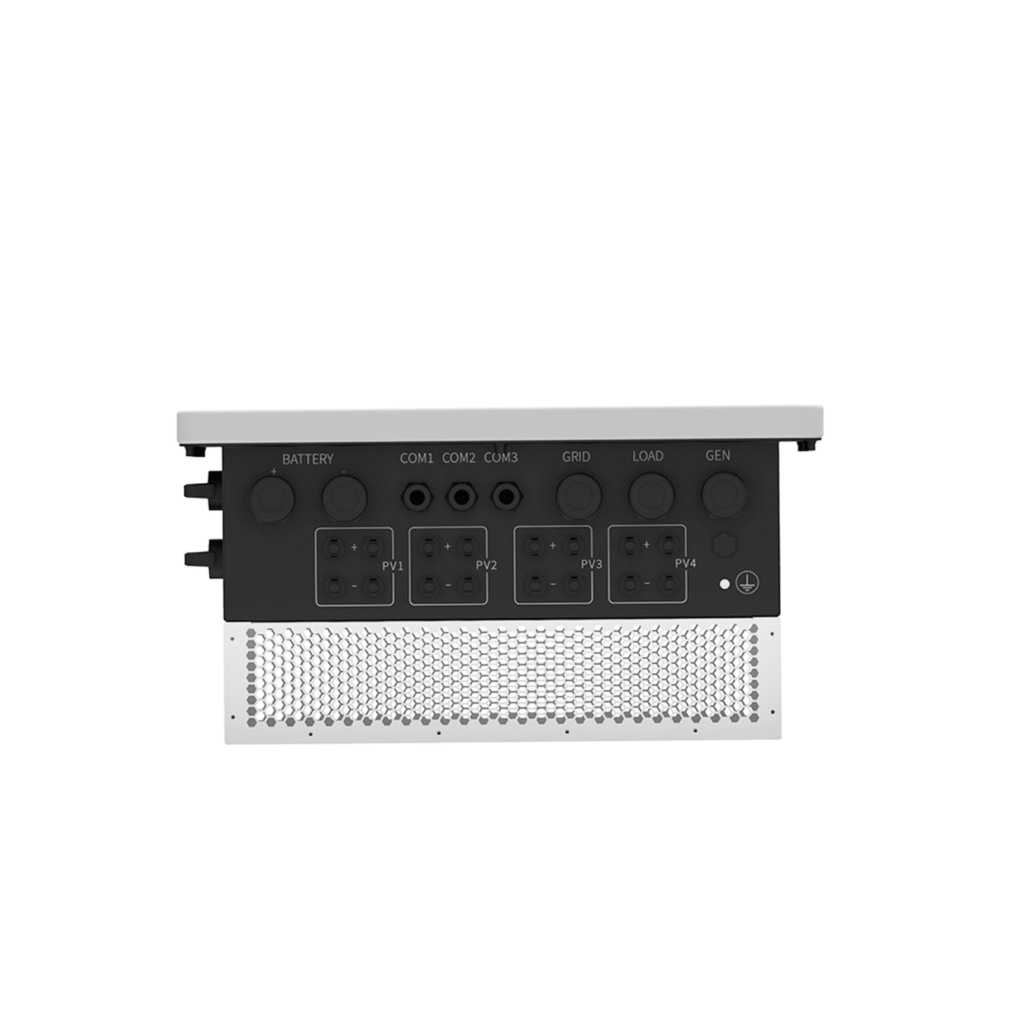

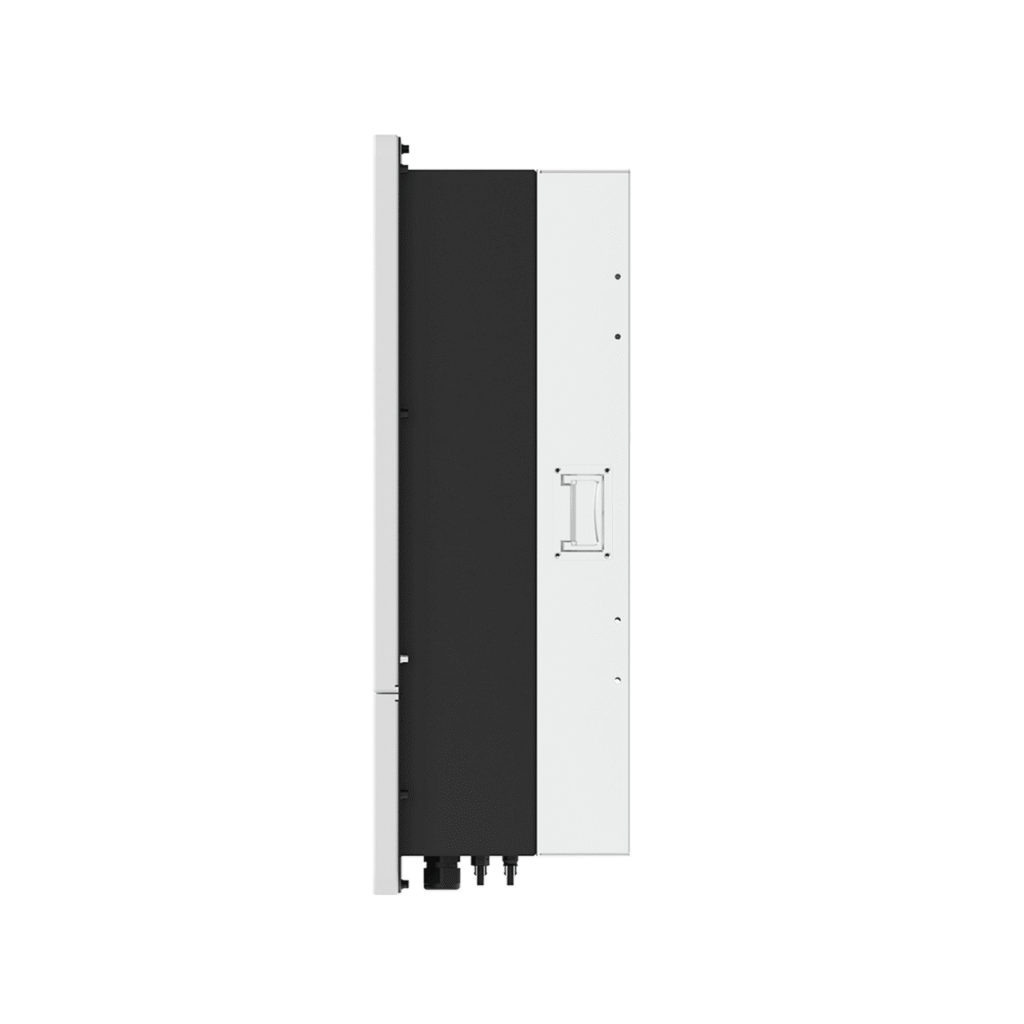

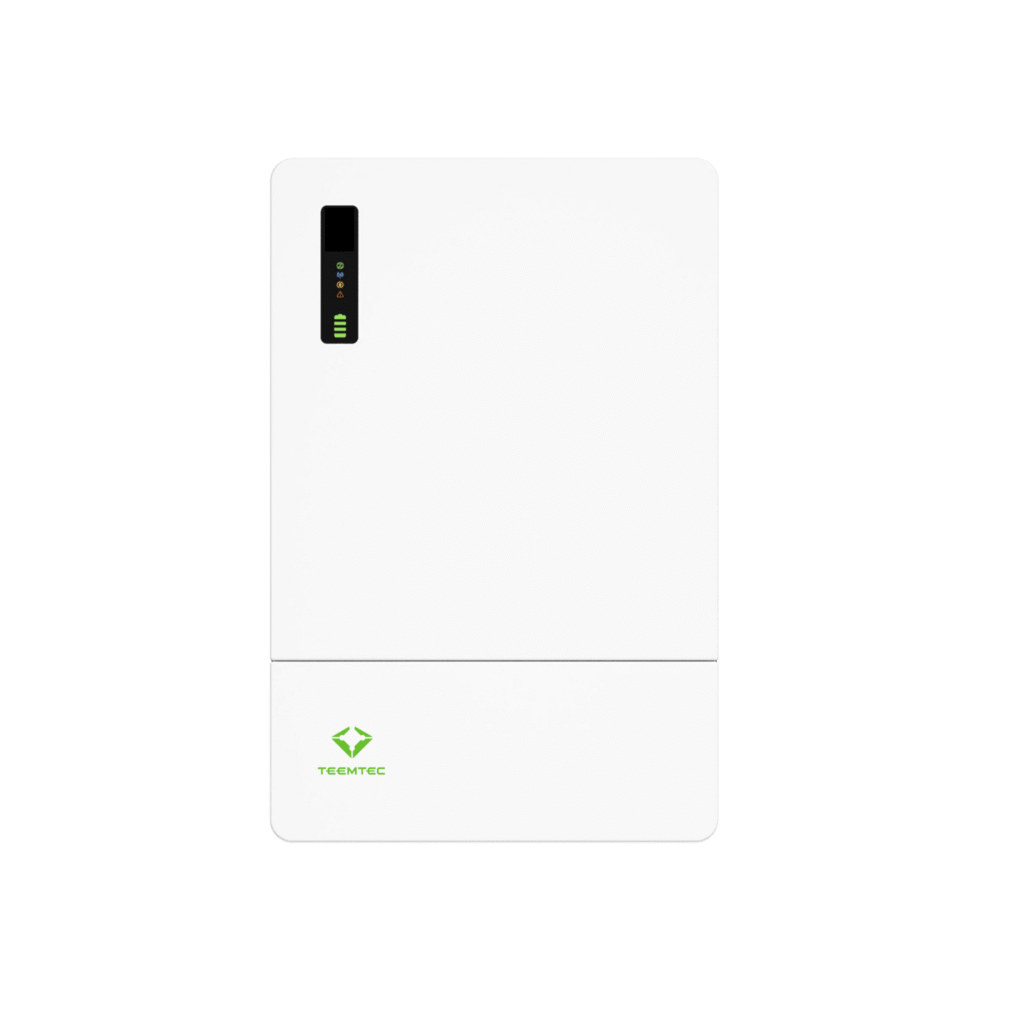

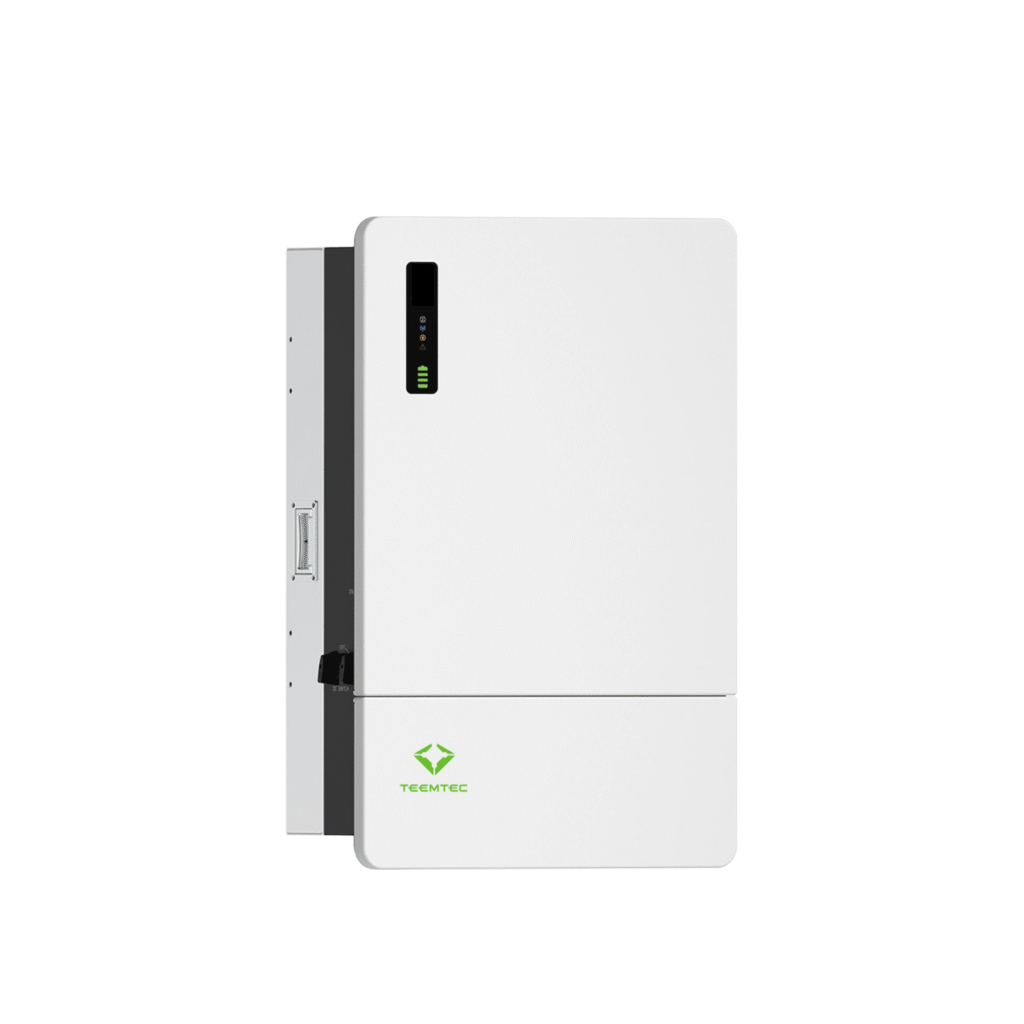

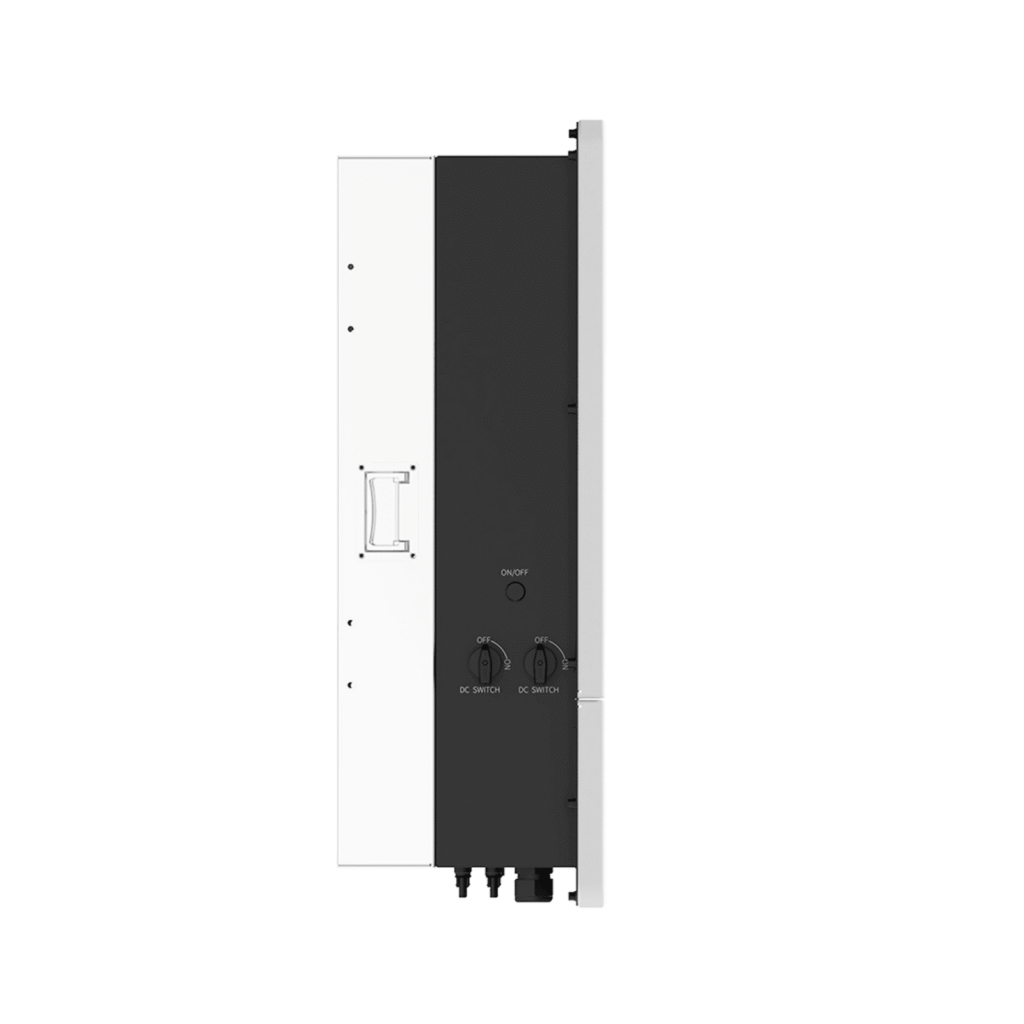

The BHY 20kW/30kW three-phase high voltage hybrid inverter is built for commercial and industrial energy storage applications. It supports up to 1000V DC input with a maximum of 3×36A PV current, and a battery voltage range of 160V–700V. Featuring 4 MPPTs and 8 string inputs, it ensures flexible system design. With IP65 protection and a 10-year warranty, this inverter delivers reliable, efficient, and long-lasting performance.
| Model | TW-BHY-20K-P3EU | TW-BHY-20K-P3EU |
|---|---|---|
| Rated Power (Input / Output) | 60 kW / 20 kW | 60 kW / 30 kW |
| Rated Voltage | 230V a.c./176V a.c.~270V a.c., L+N+PE | 230V a.c./176V a.c.~270V a.c., L+N+PE |
| Rated Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| Power Factor Range | 0.8 leading ~ 0.8 lagging | 0.8 leading ~ 0.8 lagging |
| Switch Time | <10 ms | <10 ms |
| Max. Input Current | 18A | 18A / 18A |
| Max. Continuous Current (Input / Output) | 87 A / 29 A | 87 A / 43.5 A |
| Max. Output Overcurrent Protection | 250 V / 100 A | 250 V / 100 A |
| Battery Type | Lithium /Lead-acid | Lithium /Lead-acid |
| Battery Voltage Range | 125 ~ 800 V | 125 ~ 800 V |
| Rated Battery Voltage | 200 V | 300 V |
| Max. Charge Current | 2*50 A | 2*50 A |
| Max. Discharge Current | 2*50 A | 2*50 A |
| Reverse Connect Protection | Yes | Yes |
| No. of MPPT Tracker / Strings | 2 / 2+2+2 | 2 / 2+2+2 |
| Max. PV Array Power | 34 kW | 50 kW |
| Max. DC Voltage | 1000 V | 1000 V |
| MPPT Voltage Range | 125 ~ 850 V | 125 ~ 850 V |
| Start-up Voltage | 150 V | 150 V |
| Max. Input Current | 40+40 A | 40+40 A |
| Isc PV (Absolute Maximum) | 60+60 A | 60+60 A |
| EPS Rated Output Voltage | 380 / 400 V d.c., 3W+N+PE | 380 / 400 V d.c., 3W+N+PE |
| EPS Rated Output Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| EPS Rated Output Active Power | 20 kW | 30 kW |
| EPS Rated Output Apparent Power | 22 kVA | 33 kVA |
| EPS Rated Output Current | 29 A | 43.5 A |
| Overload Capacity (Off Grid) | 100% 30s / 120% 10s / 150% 2s | 100% 30s / 120% 10s / 150% 2s |
| MPPT Efficiency | 99.90% | 99.90% |
| Euro-efficiency | 97.50% | 97.50% |
| Max. Efficiency | 98.10% | 98.10% |
| Insulation Monitoring | Yes | Yes |
| Residual Current Monitoring | Yes | Yes |
| Parallel Function | Yes | Yes |
| IP Grade | IP65 | IP65 |
| Protection | Overload, Over temperature, Short circuit, Active Anti-islanding | Overload, Over temperature, Short circuit, Active Anti-islanding |
| Storage Temperature | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
| Operating Temperature | -25℃ ~ +60℃ | -25℃ ~ +60℃ |
| Humidity | 0 ~ 95% (Non-condensing) | 0 ~ 95% (Non-condensing) |
| Operating Altitude | 4,000 m (>2,000 m Derating) | 4,000 m (>2,000 m Derating) |
| Noise | ＜45 dB | ＜45 dB |
| Weight | 45kg | 45kg |
| Dimension | 600*530*220 mm | 600*530*220 mm |
| Commutation | RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / 4G / Meter) | RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / 4G / Meter) |
