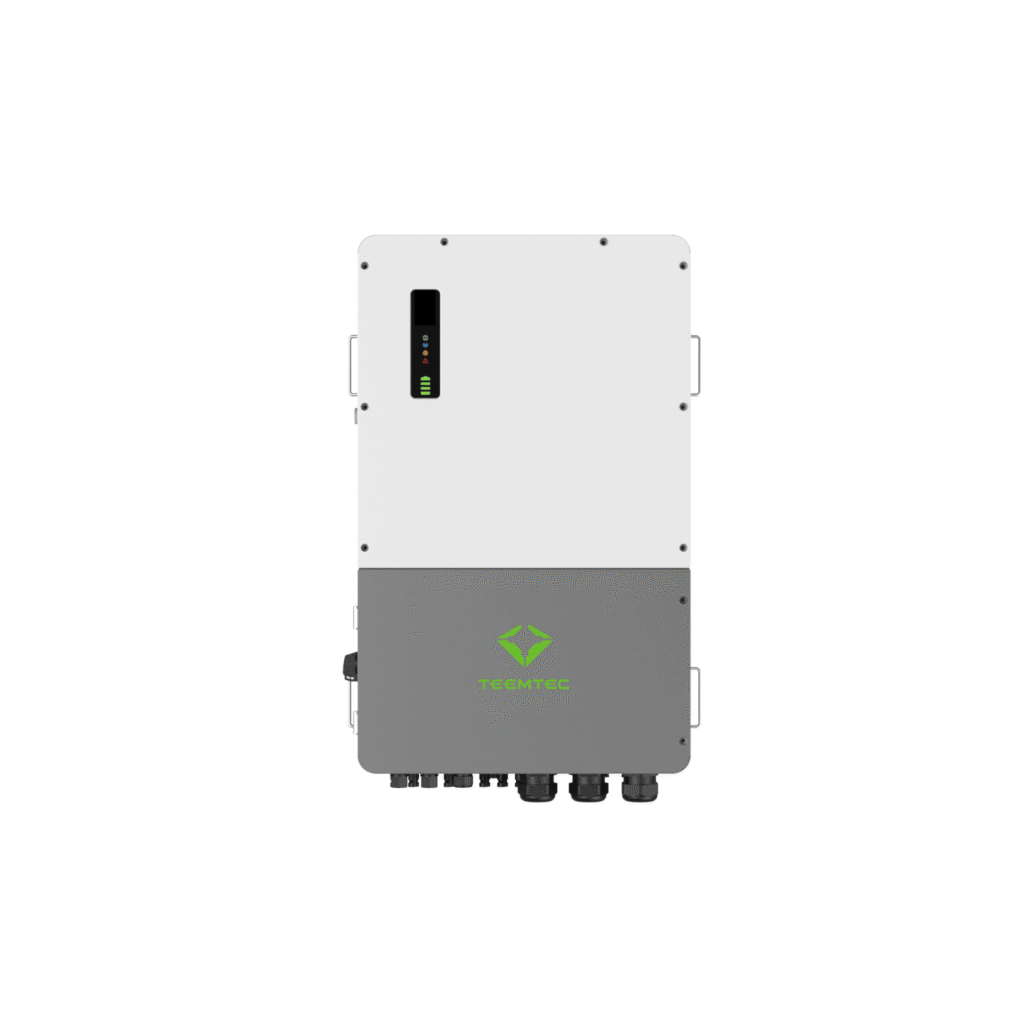

Solar Hybrid Inverter Three Phase High Voltage C&I BHX-40KW 50KW 60KW

40KW～60KW｜Hybrid Inverter｜Three Phase

Home Products Solar Hybrid Inverter Three Phase High Voltage C&I BHX-40KW 50KW 60KW

Solar Hybrid Inverter Three Phase High Voltage C&I BHX-40KW 50KW 60KW

40KW～60KW｜Hybrid Inverter｜Three Phase

Highlights at a Glance

SiC MOSFET technology for higher efficiency, reduced size, and lightweight design.

Fast switch time <10ms for seamless power continuity.

Wide MPPT voltage range 150V–950V (max 1000V) for optimal energy capture.

Dual battery interfaces: 100A×2 for independent packs or 200A parallel for flexibility.

Supports black start, off-grid & economy mode for versatile energy applications.

AC coupling allows easy retrofit with existing solar systems

Quick Summary

BHX Series three-phase high-voltage hybrid inverters (40kW/50kW/60kW) are engineered for C&I energy storage systems. Featuring advanced SiC MOSFET technology, fast <10ms switch time, wide 150–950V MPPT range (max 1000V), and dual 200A battery interfaces, they ensure high efficiency, stability, and flexible applications. With IP65 protection, AC coupling, black start, and off-grid support, the BHX series is ideal for large-scale solar and storage integration.

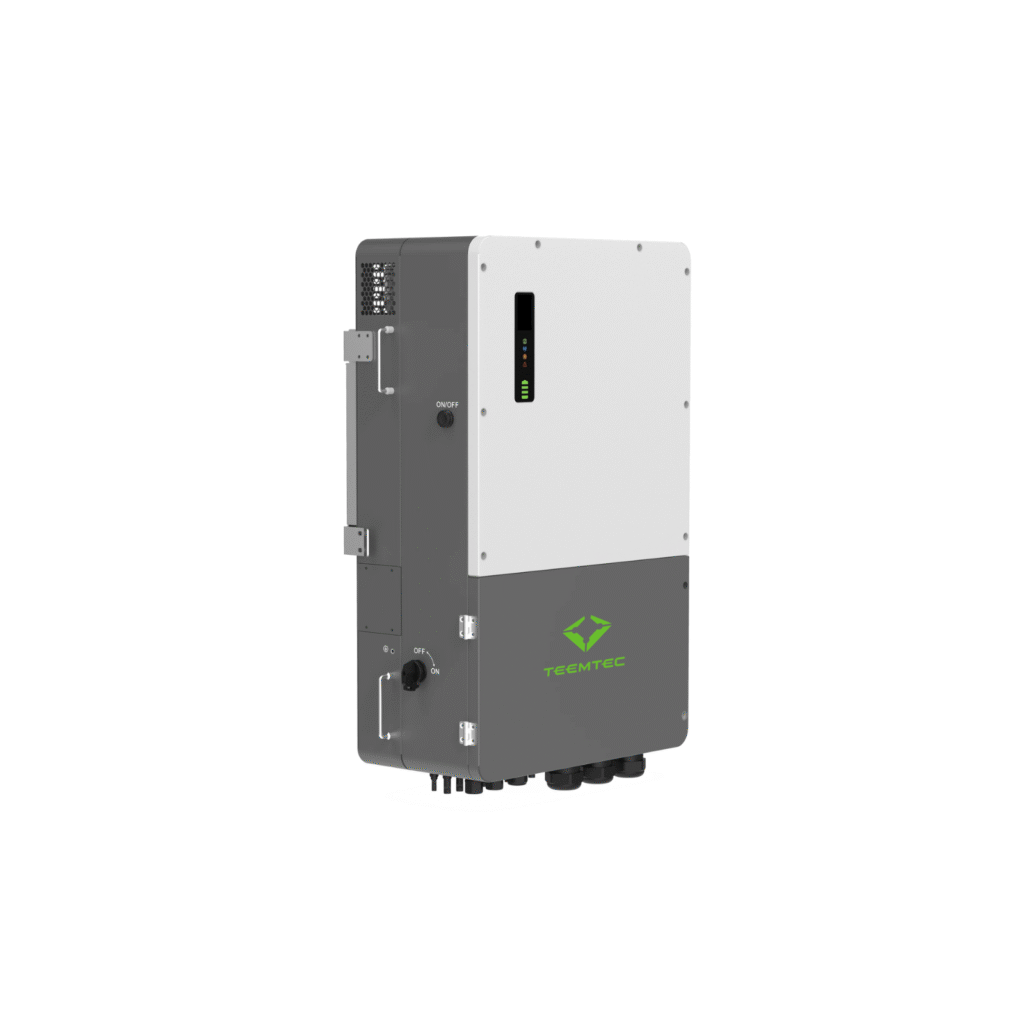

40kW~60kW Three-Phase High Voltage Hybrid Inverter BHX Series

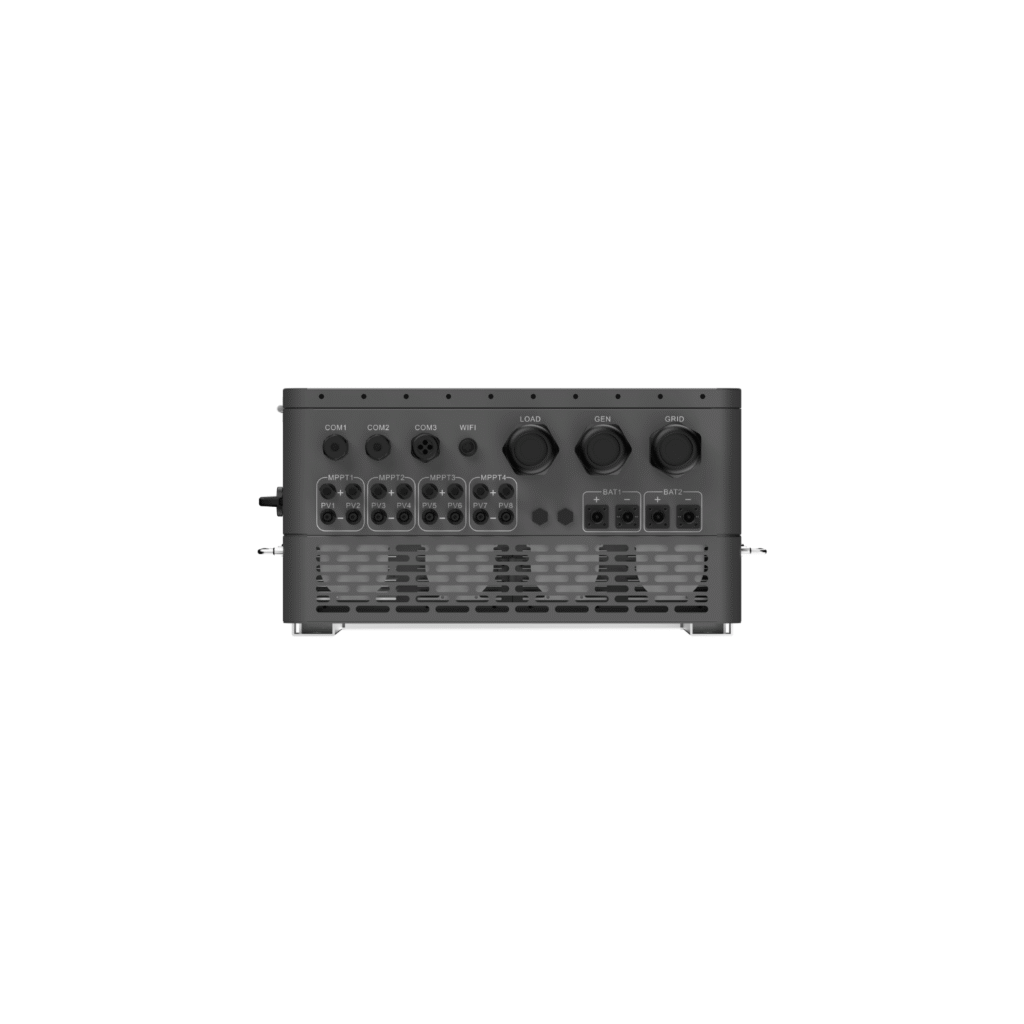

40kW~60kW Three-Phase High Voltage Hybrid Inverter Commutation Ports

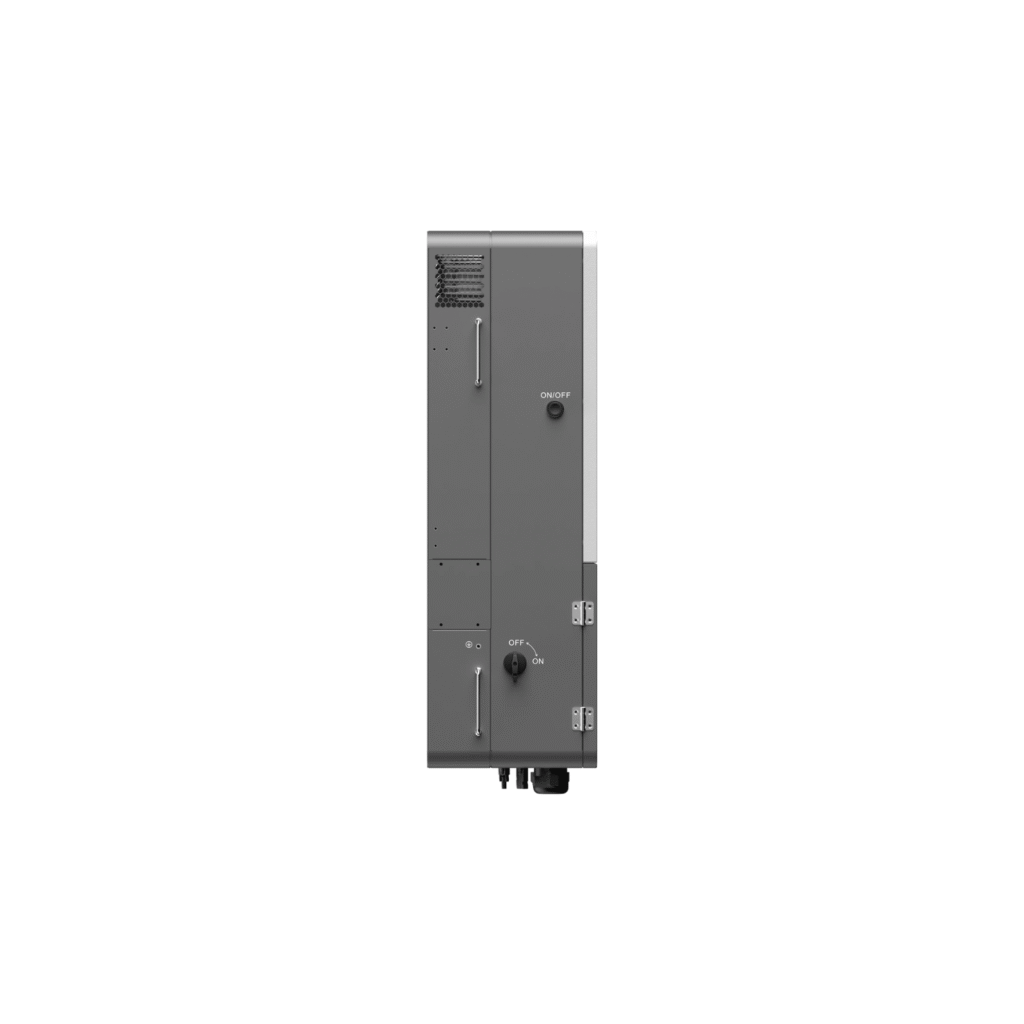

40kW~60kW Three-Phase High Voltage Hybrid Inverter BH X

Model	TW-BHX-40K-P3EU	TW-BHX-50K-P3EU	TW-BHX-60K-P3EU
Rated Power (Input / Output)	138 kW / 40 kW	138kW / 50 kW	138 kW / 60 kW
Rated Voltage	380 / 400 V a.c., 3W+N+PE	380 / 400 V a.c., 3W+N+PE	380 / 400 V a.c., 3W+N+PE
Rated Frequency	50 Hz / 60 Hz	50 Hz / 60 Hz	50 Hz / 60 Hz
Power Factor Range	0.8 leading ~ 0.8 lagging	0.8 leading ~ 0.8 lagging	0.8 leading ~ 0.8 lagging
Switch Time	<10 ms	<10 ms	<10 ms
Max. Continuous Current (Input / Output)	200 A / 58A	200 A / 72A	200 A / 87A
Max. Output Overcurrent Protection	123 A	153 A	185 A
Battery Type	Lithium /Lead-acid	Lithium /Lead-acid	Lithium /Lead-acid
Battery Voltage Range	150 ~ 800 V	150 ~ 800 V	150 ~ 800 V
Max. Charge Current	2*100 A	2*100 A	2*100 A
Max. Discharge Current	2*100 A	2*100 A	2*100 A
Reverse Connect Protection	Yes	Yes	Yes
No. of MPPT Tracker / Strings	4 / 2+2+2+2	4 / 2+2+2+2	4 / 2+2+2+2
Max. PV Array Power	68 kW	85 kW	100 kW
Max. DC Voltage	1000 V	1000 V	1000 V
MPPT Voltage Range	150 ~ 950 V	150 ~ 950 V	150 ~ 950 V
Start-up Voltage	125 V	125 V	125 V
Max. Input Current	8x20 A	8x20 A	8x20 A
Isc PV (Absolute Maximum)	8x30 A	8x30 A	8x30 A
EPS Rated Output Voltage	380 / 400 V a.c., 3W+N+PE	380 / 400 V d.c., 3W+N+PE	380 / 400 V a.c., 3W+N+PE
EPS Rated Output Frequency	50 Hz / 60 Hz	50 Hz / 60 Hz	50 Hz / 60 Hz
EPS Rated Output Active Power	40 kW	50 kW	60 kW
EPS Rated Output Apparent Power	44 kVA	55 kVA	66 kVA
EPS Rated Output Current	58 A	72 A	87 A
Overload Capacity (Off Grid)	100% 30s / 120% 10s / 150% 2s	100% 30s / 120% 10s / 150% 2s	110% 30s / 120% 10s / 150% 0.2s
MPPT Efficiency	99.90%	99.90%	99.9%
Euro-efficiency	97.50%	97.50%	97.5%
Max. Efficiency	98.10%	98.10%	98.5%
Insulation Monitoring	Yes	Yes	Yes
Residual Current Monitoring	Yes	Yes	Yes
Parallel Function	Yes	Yes	Yes
IP Grade	IP66	IP66	IP66
Protection	Ground Fault Current Monitoring, Earth Fault Detection, Residual Current (RCD) Detection	Ground Fault Current Monitoring, Earth Fault Detection, Residual Current (RCD) Detection	Ground Fault Current Monitoring, Earth Fault Detection, Residual Current (RCD) Detection
Storage Temperature	-25℃ ~ +60℃	-25℃ ~ +60℃	-25℃ ~ +60℃
Operating Temperature	-25℃ ~ +60℃	-25℃ ~ +60℃	-25℃ ~ +60℃
Humidity	0 ~ 95% (Non-condensing)	0 ~ 95% (Non-condensing)	0% ~ 95% (Non-condensing)
Operating Altitude	4,000 m (>2,000 m Derating)	4,000 m (>2,000 m Derating)	4,000 m (>2,000 m Derating)
Noise	<65 dB	<65 dB	<65 dB
Weight	88kg	88kg	88kg
Dimension	544880278 mm	544880278 mm	544880278 mm
Commutation	RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / 4G / Meter)	RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / 4G / Meter)	RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / 4G / Meter)

Warranty & Service

Includes 10-year warranty for reliable long-term performance.
