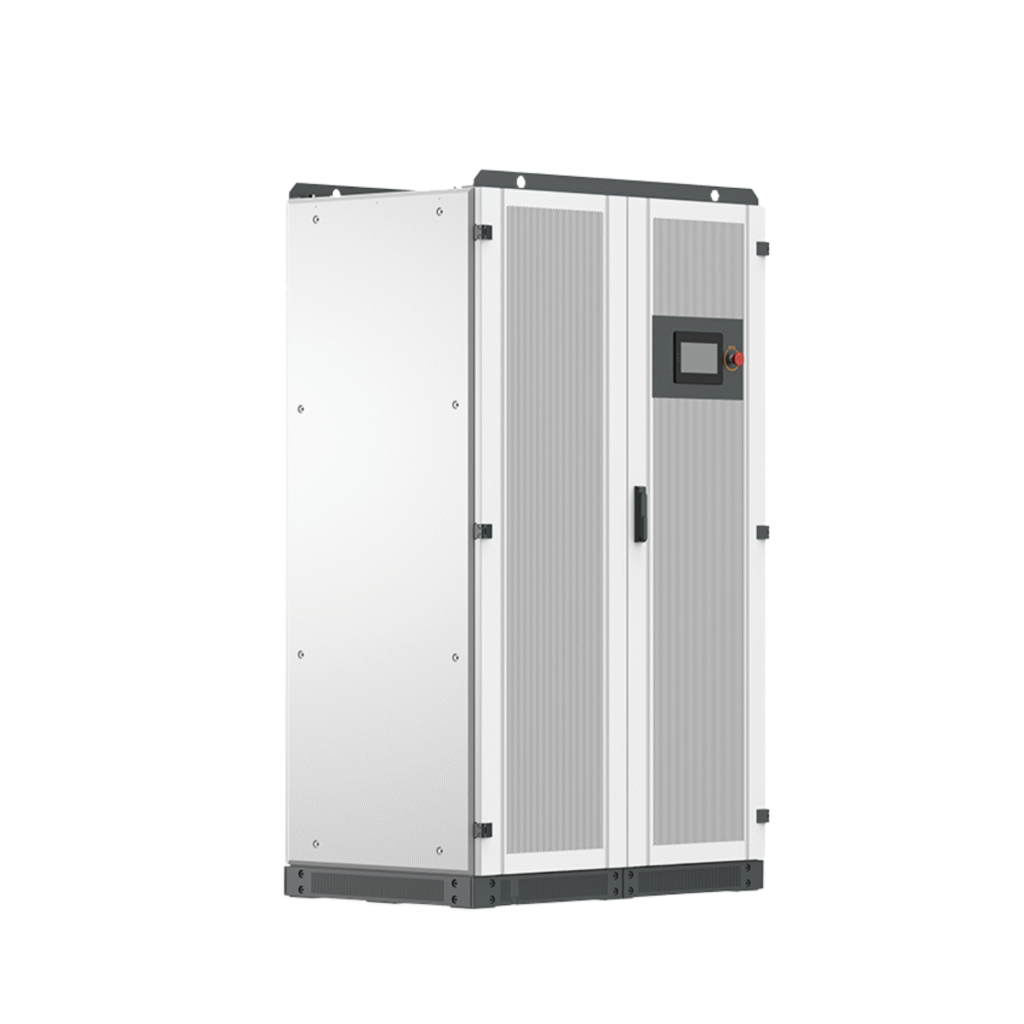

Solar Hybrid Inverter Three Phase C&I BPS-400V

30kW~500kW｜400V｜Hybrid Inverter

Home Products Solar Hybrid Inverter Three Phase C&I BPS-400V

Solar Hybrid Inverter Three Phase C&I BPS-400V

30kW~500kW｜400V｜Hybrid Inverter

Highlights at a Glance

SiC MOSFET technology for higher efficiency, reduced size, and lightweight design.

Fast switch time <10ms for seamless power continuity.

Wide MPPT voltage range 150V–950V (max 1000V) for optimal energy capture.

Dual battery interfaces: 100A×2 for independent packs or 200A parallel for flexibility.

Supports black start, off-grid & economy mode for versatile energy applications.

AC coupling allows easy retrofit with existing solar systems

Quick Summary

The BPS series hybrid inverter integrates PV controllers, energy storage converters, and on/off-grid switching units. It supports multiple power sources including solar, diesel generator, battery, and loads, with flexible configuration and remote O&M. Ideal for microgrids, remote areas, and islands, it enhances system availability and ensures stable power supply.

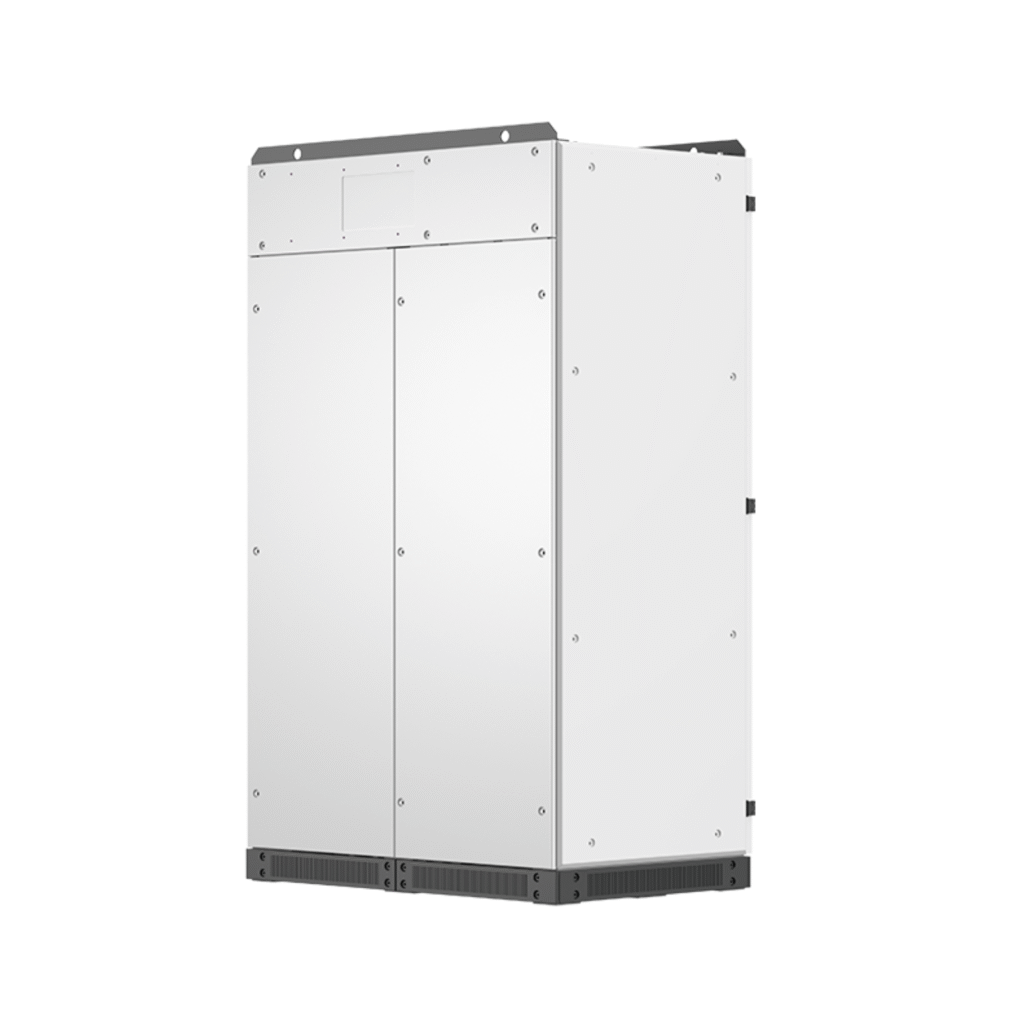

208_220_240V PV hybrid inverter energy storage converters

Model	TW-BPS30	TW-BPS50	TW-BPS100	TW-BPS150	TW-BPS200	TW-BPS500
AC(on-grid) Max. output power	33KW	55KW	110KW	165KW	275KW	550KW
Rated output power	30KW	50KW	100KW	150KW	250KW	500KW
Rated voltage	400V	400V	400V	400V	400V	400V
Voltage range	320~460V	320~460V	320~460V	320~460V	320~460V	320~460V
Rated current	43A	72A	144A	216A	361A	722A
Rated frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Frequency range	45~55Hz / 55~65Hz	45~55Hz / 55~65Hz	45~55Hz / 55~65Hz	45~55Hz / 55~65Hz	45~55Hz / 55~65Hz	45~55Hz / 55~65Hz
THDi	<3%	<3%	<3%	<3%	<3%	<3%
Power factor	1leading-1lagging(settable)	1leading-1lagging(settable)	1leading-1lagging(settable)	1leading-1lagging(settable)	1leading-1lagging(settable)	1leading-1lagging(settable)
Grid type	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE
AC(off-grid) Max. output power	33KW	55KW	110KW	165KW	275KW	550KW
Rated power	30KW	50KW	100KW	150KW	250KW	500KW
Rated voltage	400V	400V	400V	400V	400V	400V
Rated current	43A	72A	144A	216A	361A	722A
THDu	≤1% linear; or≤5% nonlinear	≤1% linear; or≤5% nonlinear	≤1% linear; or≤5% nonlinear	≤1% linear; or≤5% nonlinear	≤1% linear; or≤5% nonlinear	≤1% linear; or≤5% nonlinear
Rated frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Overload capacity	110% long-term, 120% 1min	110% long-term, 120% 1min	110% long-term, 120% 1min	110% long-term, 120% 1min	110% long-term, 120% 1min	110% long-term, 120% 1min
Max. PV input voltage	1000V	1000V	1000V	1000V	1000V	1000V
Max. PV power	36/72KW	60/120KW	120/180/240KW	120/180/240KW	300/360KW	600/660/720KW
MPPT module quantity	1/2	1/2	2/3/4	2/3/4	5/6	10/11/12
MPPT voltage range	250~850V	250~850V	250~850V	250~850V	250~850V	250~850V
Battery voltage range	250~850V	320~850V	420~850V	420~850V	420~850V	500~850V
Max. charging power	36/72V	60/120V	120/180/240V	120/180/240	300/360V	600/660/720V
Dimension WDH (mm)	8008001,900mm	8008001,900mm	1,2008002,050mm	1,2008002,050mm	(6007202,050mm)1+1,200800*2,050mm	(6007202,050mm)2+1,6001,050*2,050mm
Weight	620/650kg	720.750kg	1,120/1,150/1,180kg	1,250/1,280/1,310kg	1,980/2,010kg	3,265/3,295/3,325kg
Operation temperature	-30 ~ 55℃	-30 ~ 55℃	-30 ~ 55℃	-30 ~ 55℃	-30 ~ 55℃	-30 ~ 55℃
Relative humidity	0 ~95% non-condensing	0 ~95% non-condensing	0 ~95% non-condensing	0 ~95% non-condensing	0 ~95% non-condensing	0 ~95% non-condensing
IP Grade	IP20	IP20	IP20	IP20	IP20	IP20
Noise emission	<70db	<70db	<70db	<70db	<70db	<70db
Operating altitude (m)	<5,000 (>3,000 Derating)	<5,000 (>3,000 Derating)	<5,000 (>3,000 Derating)	<5,000 (>3,000 Derating)	<5,000 (>3,000 Derating)	<5,000 (>3,000 Derating)
Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling
BMS communication	RS485, CAN	RS485, CAN	RS485, CAN	RS485, CAN	RS485, CAN	RS485, CAN
EMS communication	RS485, TCP/IP	RS485, TCP/IP	RS485, TCP/IP	RS485, TCP/IP	RS485, TCP/IP

Warranty & Service

Includes 10-year warranty for reliable long-term performance.
