Multi-Busbar Half-Cell Design – Better light utilization and current collection efficiency, effectively enhancing power output and reliability.
Anti-PID Performance – Optimized cell production technology and material control minimize power attenuation caused by PID phenomenon.
Durability in Harsh Environments – Certified against high salt mist and ammonia corrosion, ensuring long-term outdoor stability.
Strong Mechanical Load Capacity – Withstands 2400 Pa wind load and 5400 Pa snow load, meeting international safety standards.
Stable Power Generation – Single-sided monocrystalline module delivers consistent performance for residential, commercial, and utility projects.

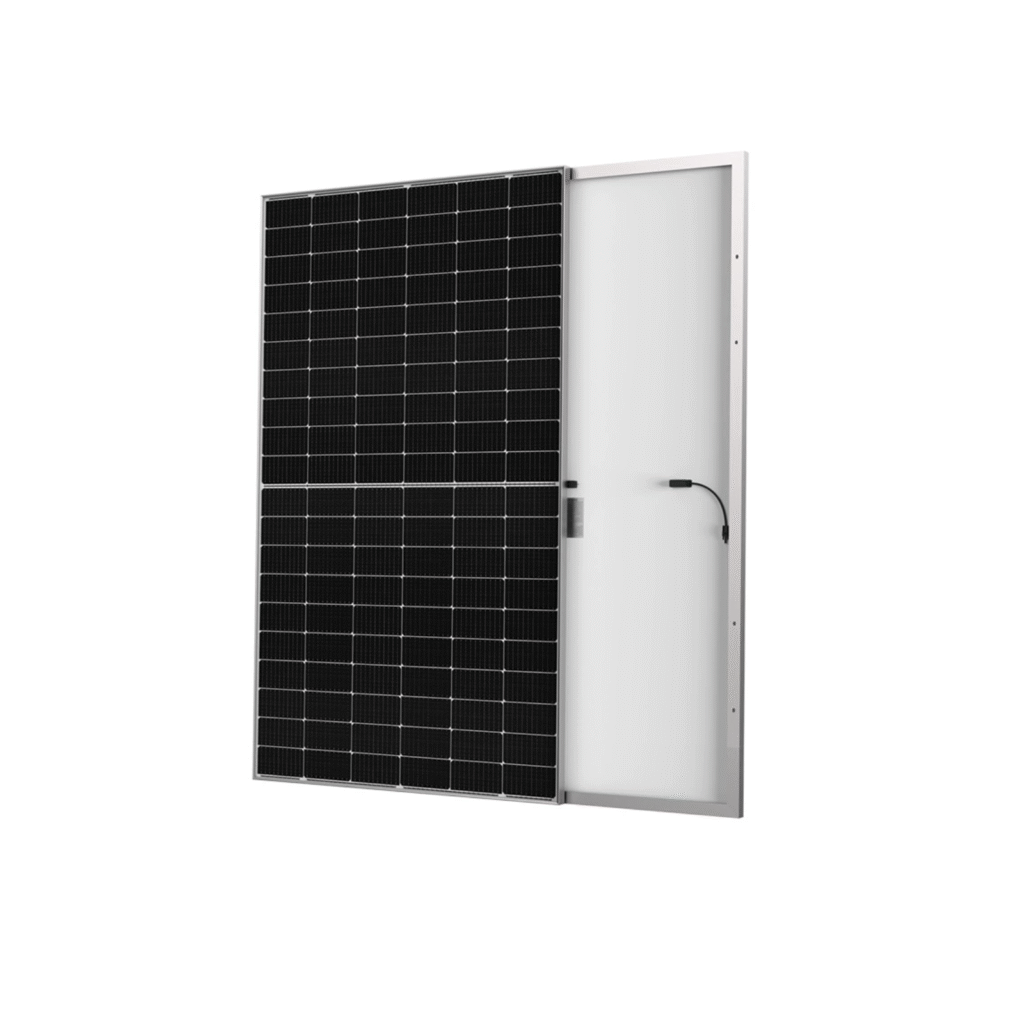

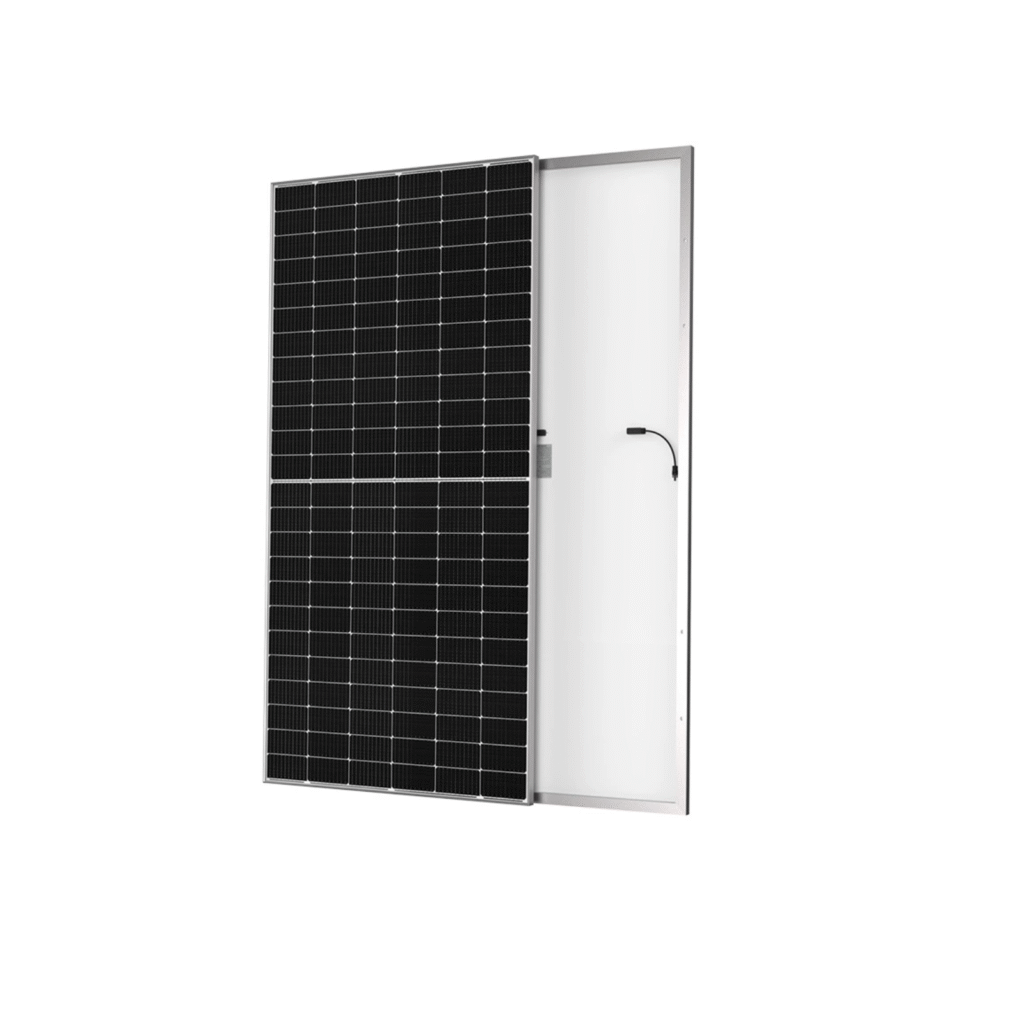

High-efficiency monocrystalline photovoltaic panels with advanced multi-busbar half-cell design. The single-sided module ensures stable power generation, excellent reliability, and adaptability to harsh environments, making it an ideal choice for residential, commercial, and utility-scale solar systems.
| STC | 350W | 400W | 530W | 550W |
|---|---|---|---|---|
| Peak Power (Pmax) | 350W | 400W | 530W | 550W |
| Power Tolerance | 0～3W | 0～3W | 0～3W | 0～3W |
| Max Power Voltage Vmp | 34.20V | 30.95V | 41.27V | 41.97V |
| Max Power Current Imp | 10.23A | 12.92A | 12.85A | 13.11A |
| Open Circuit Voltage Voc | 41.04V | 37.23V | 49.15V | 49.95V |
| Short- Circuit Current Isc | 10.83A | 13.69A | 13.74A | 14.05A |
| Cell Specification | Mono(182mm) | Mono(182mm) | Mono(182mm) | Mono(182mm) |
| Tempered Glass | 3.2 Tempered glass+EVA+PET | 3.2 Tempered glass+EVA+PET | 3.2 Tempered glass+EVA+PET | 3.2 Tempered glass+EVA+PET |
| Frame | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy |
| Module Dimensions | 1540*1134*35mm | 1720*1134*35mm | 2279*1134*35mm | 2279*1134*35mm |
| Module Weight | 18.8KG/Pcs | 21.5KG/Pcs | 28.6KG/Pcs | 28.6KG/Pcs |
| Output Cable | 4mm²/900mm | 4mm²/300mm | 4mm²/300mm | 4mm²/300mm |
| Connector | MC4 | MC4 | MC4 | MC4 |
| Junction Box | IP67/3*bypass diode | IP67/3*bypass diode | IP68/3*bypass diode | IP68/3*bypass diode |
| Backsheet Color | Black / White | Black / White | Black / White | Black / White |
| Static Load | Front 5400PA/back 2400PA | Front 5400 Pa, Back 2400 Pa | Front 5400 Pa, Back 2400 Pa | Front 5400 Pa, Back 2400 Pa |
| Operating Temperature | -40 °C ~ +85 °C | -40 °C ~ +85 °C | -40 °C ~ +85 °C | -40 °C ~ +85 °C |
