Highlights at a Glance

Lightweight & Easy Installation – Only 2.9 kg/m², 70% lighter than traditional glass modules; adhesive mounting eliminates the need for brackets.

Ultra-Thin Design – Just 1.8 mm thick (excluding junction box), 50% thinner than conventional modules.

Hail-Impact Resistant – Industry-first design prevents micro-cracks.

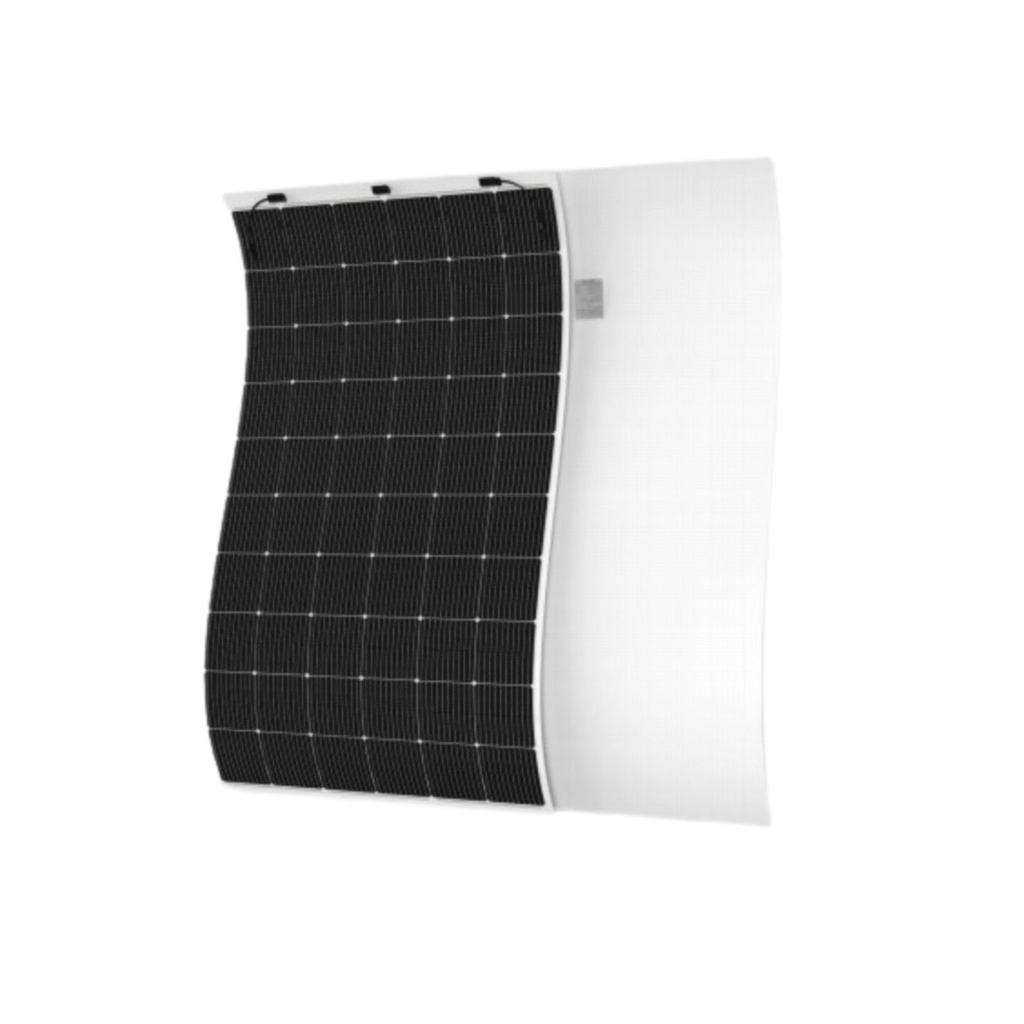

Highly Flexible – Minimum bending radius of 0.3 m; maintains performance without cracking.

Adhesive Ready – Original panel surface allows quick installation with structural glue, no additional support needed.

Versatile Applications – Suitable for residential rooftops, commercial facades, curved surfaces, portable solar systems, RVs, boats, and other innovative solar projects.

Quick Summary

Lightweight, ultra-thin, and highly flexible crystalline silicon solar panel designed for quick adhesive installation. Ideal for building-integrated photovoltaics (BIPV), residential rooftops, curved surfaces, facades, portable solar systems, RVs, boats, and innovative solar applications.

STC	560W	345W	260W
Peak Power (Pmax)	560W	345W	260W	175W	87W
Power Tolerance	0～5W	0～5W	0～5W	0～5W	0～5W
Max Power Voltage Vmp	45.29V	28.37V	42.55V	14.14V	14.14V
Max Power Current Imp	12.3A	12.16A	6.11A	12.37A	6.19A
Open Circuit Voltage Voc	53.05V	33.26V	49.82V	16.63V	16.63V
Short- Circuit Current Isc	12.06A	12.6A	6.33A	12.82A	6.41A
Max Fus Rating	25A	25A	25A	25A	25A
Max System Voltage	1500V	1500V	1500V	1500V	1500V
Cell Specification	Topcon cells 182.2mm*183.75mm	MONO PERC 182*182mm	MONO PERC 182*182mm	MONO PERC 182*182mm	MONO PERC 182*182mm
Module Dimensions	224011901.8mm	120015141.8mm	120011461.8mm	12007781.8mm	12004101.8mm
Module Thickness	1.8mm without Junction Box	1.8mm without Junction Box	1.8mm without Junction Box	1.8mm without Junction Box	1.8mm without Junction Box
Module Weight	2.9kg/cubic meter	2.9kg/cubic meter	2.9kg/cubic meter	2.9kg/cubic meter	2.9kg/cubic meter
Output Cable	4 mm², 370 mm length (customizable per customer requirements)	4 mm², 450 mm length (customizable per customer requirements)	4 mm², 450 mm length (customizable per customer requirements)	4 mm², 450 mm length (customizable per customer requirements)	4 mm², 450 mm length (customizable per customer requirements)
Connector	MC4	MC4	MC4	MC4	MC4
Junction Box	IP68	IP68	IP68	IP68	IP68
Backsheet Color	Black / White	White	White	White	White
Static Load	Front 5400 Pa, Back 2400 Pa	Front 5400 Pa, Back 2400 Pa	Front 5400 Pa, Back 2400 Pa	Front 5400 Pa, Back 2400 Pa	Front 5400 Pa, Back 2400 Pa
Operating Temperature	-40 °C ~ +85 °C	-40 °C ~ +85 °C	-40 °C ~ +85 °C	-40 °C ~ +85 °C	-40 °C ~ +85 °C

Warranty & Service

12-year product warranty; power degradation less than 1% in the first year, with power output no less than 89.4% after 25 years.
